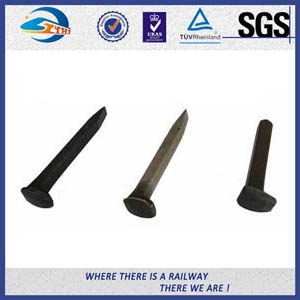

Low Carbon Steel Black Oxide Track Spike Fastening Wooden Sleeper Ss-EN10025
- Product Number
- Rail Spike
- Quantity：
- 10000
- Rrice：
- ￥1000.00
- Time：
- 2015/5/22 11:35:53
Detailed Product Description
|
Product: |
Black Oxide Track Spike |
Material: |
Q235 |
|
Surface: |
Oxide Black |
Application: |
Used On Wooden Sleepers |
|
Mateial Standard: |
Ss-EN10025 |
Low Carbon Steel Black Oxide Track Spike Fastening Wooden Sleeper Ss-EN10025
General Intoduction of Track Spike
The spikes used to fasten T-shaped railroad track to wooden ties have an L-shaped head and a square shank. The bottom of the head is sloped to match the slope of the flange of a rail. The tip is wedge-shaped, not pointed. The wedge is driven into the tie across the grain, that is, parallel to the track.
Its square cross section gives a railroad spike much higher holding strength than a fastener having the same amount of metal but a circular cross section has; roughly speaking, about 50% more. A spike with the wedge driven across the grain will have about twice as much holding power as one driven with the grain. Early experiments showed that pulling out a 9/16″ × 9/16″ spike driven 4¼ inches into dry cedar required on average a force of 857 pounds. In seasoned oak, another experimenter needed 4281 pounds.
Current standards for track spikes define two grades: 1 (soft) and 2 (high carbon). The stronger high carbon spikes must be marked “HC”.
Dimensions
|
Length |
Width |
Number |
|
5½ |
9/16 |
360 |
|
5 |
9/16 |
405 |
|
4½ |
9/16 |
460 |
|
5 |
½ |
505 |
|
4½ |
½ |
535 |
|
4 |
½ |
605 |
|
3½ |
½ |
670 |
|
4½ |
7/16 |
690 |
|
4 |
7/16 |
780 |
|
3½ |
7/16 |
890 |
|
4½ |
3/8 |
780 |
|
4 |
3/8 |
1025 |
|
3½ |
3/8 |
1250 |
|
3 |
3/8 |
1380 |
|
2½ |
5/16 |
1650 |
Product Specifications
|
Grade |
4.6 |
4.6 |
A370 |
ASTM A65 Gr1,Gr2 |
4.6 |
4.6 |
ASTM A65 Gr1,Gr2 |
4.6 |
4.6 |
|
Material |
Q235 |
low carbon steel |
Q235 |
Q235 |
Steel type |
||||
|
low carbon |
low carbon |
low carbon |
SS41 |
low carbon steel |
|||||
|
Surface |
plain (oiled) |
||||||||
|
Standard refers |
GB/T 1346 |
GOST5812 |
AREMA |
AREMA |
Ss-EN10025 |
BS70R, BS60R |
AREA |
||
