Oxide Black Railway Bolt Nut for Fish Plate Grade 8.8 45 # tunnel bolt
- Product Number
- Railway Blot
- Quantity：
- 10000
- Rrice：
- ￥1000.00
- Time：
- 2015/5/22 11:39:12
Detailed Product Description
|
Product Name: |
Fish Bolt |
Application: |
Track |
|
Grade: |
8.8, 10.9 |
Material: |
45#, 40Cr |
|
Surface: |
Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet |
Guarantee: |
100% Meet Contract |

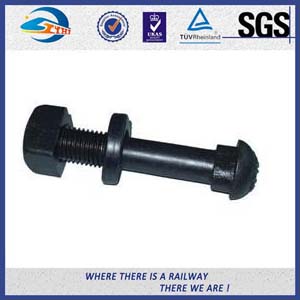

Oxide Black Railway Bolt Nut for Fish Plate Grade 8.8 45 # tunnel bolt

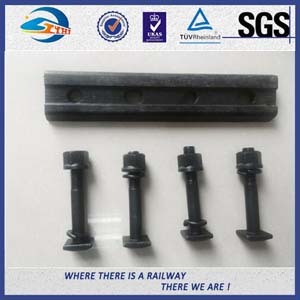

Product Name: Railway Fish Bolt Set
HS Code: 73181 59001
Brief introduction
Fish bolt are used for splice bar connections and SUYU can supply a range of fish bolts manufactured to international standards according to BS, ASTM and DIN, among others.
Listed below are examples of some of our fish bolt manufactured over the last several years as per BS 20M, 30M, 35M, 35R, 50 O, 60A, 75R, 80R, 80A, 95RBH, and 113A; DIN S10, S14, S18, S20, S24, S30, S49, UIC54, UIC60; and AREMA 40ASCE, 60ASCE, 75ASCE, 90ARA, 115RE.
Material
|
Material |
||
|
Grade |
8.8 |
10.9 |
|
Material |
45# |
40Cr |
|
Mechanical properties |
Tensile strength:≥800Mpa |
Tensile strength:≥1000Mpa |
|
Yield strength:≥640Mpa |
Yield strength:≥900Mpa |
|
|
Elongation:≥12% |
Elongation:≥9% |
|
|
Cold bending: 90 degree without crack |
Cold bending: 90 degree without crack |
|
|
Surface |
plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing |
|
Classification

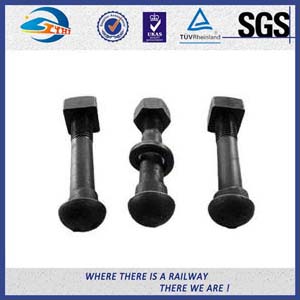

Button Head Oval Neck Track Bolt
|
Diameter |
Length |
Weight (Kg) |
|
1/2" |
1-3/4" |
0.097 |
|
1/2" |
2" |
0.10 |
|
1/2" |
2-1/4 |
0.112 |
|
5/8 |
2-1/2 |
0.183 |
|
3/4 |
3 |
0.328 |
|
3/4 |
3-1/2 |
0.339 |
|
3/4 |
4 |
0.356 |
|
7/8 |
4-1/2 |
0.559 |
|
7/8 |
5 |
0.593 |
|
1 |
5 |
0.8 |
|
1 |
5-1/2 |
0.839 |
|
1 |
6 |
0.879 |
|
1-1/16 |
6 |
0.995 |
|
1-1/8 |
6-1/2 |
1.186 |
Diamond Neck Track Bolts
|
Diameter |
Length |
Weight (Kg) |
|
7/8 |
4-1/2 |
0.563 |
|
7/8 |
5-1/2 |
0.651 |
|
1 |
5-1/4 |
0.889 |
|
1 |
5-3/4 |
0.895 |
|
Nominal Size |
Thread Length |
Bolt Length |
|
3/4 |
2 |
3-7/8 |
|
7/8 |
2-1/8 |
4-3/8 |
|
15/16 |
2-5/16 |
4-5/16 |
|
15/16 |
2-1/8 |
5 |
|
1 |
2-5/16 |
4-15/16 |
|
1 |
2-11/16 |
6-1/16 |

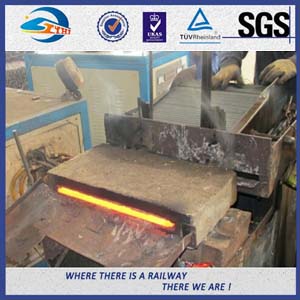

Process
Application
Similarity
|

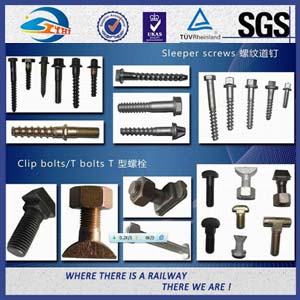

Type |
1. fish bolt |
|
2. T bolt |
|
|
3. anchor bolt |
|
|
4. tunnel bolt |
|
|
5. arch bolt |
|
|
6. knurling bolt |
|
|
7. slipknot bolt |
|
|
8. hex socket head bolt |
|
|
9. hex head cao bolt |
|
|
10 square bolt |
|
|
11. stud bolt |
|
|
12. special bolt |
|
|
13. any other bolts |
Quotation necessity ( the more, the better )
Drawing with full size
Material and Grade
Surface Treatment
Order quantity
Sale Range
Rail fastening system
Dog spike / Screw spike
Bolt set
Elastic clamp
Rail anchor
Rail shoulder
Fish plate
Tie plate
Plastic / Rubber parts
Brake shoe
Steel rail
New wood sleeper
