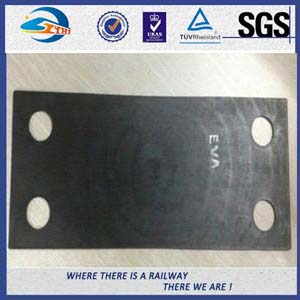

Injection Moulding Rail HDPE / Rubber Track Pads for Customizable Railway Basement

Product Number
Rail HDPE ,Rubber Pad
Quantity:
1000
Rrice:
¥1000.00
Time:
2015/5/22 14:15:30
Share: Copy More

Detailed Product Description

Product:

Track Rubber Pad

Material:

Rubber Or HDPE

Color:

Black / Red

Size:

Customizable

Making Process:

Injection Moulding

Advantage:

Durable

Rail HDPE / Rubber Pad Track Support Customizable Railway Basement

SUYU have been supplying track support products to the rail industry for many years.Manufactured in a

variety of natural and synthetic elastomers, SUYU railpads are designed to withstand the most demanding

operating environments. SUYU railpads offer the following benefits:

1. Dramatically Improved Impact

2. Attenuation Noise Suppression

3. Improved Passenger Comfort

4. Extended Track Life

5. Extended Ballast Life

SUYU in a joint initiative with a major world producer of rail track fastening systems analysed and

developed a resilient pad concept to protect concrete rail sleepers from damage caused by the dynamic

forces of passing trains. The result was the Patented Studded railpad.

Over 45 Million of these rail pads are now used successfully Worldwide, including the USA, Canada,

Australia, Norway, Sweden, Denmark, Belgium, France, Georgia, Lithuania, Hong Kong, Japan, Korea,

Czech Republic, Uzbekistan, Syria, Singapore, Sudan, Estonia, Finland and extensively within the UK.

The combination of studded design and specially formulated rubber compound, gives SUYU patented

rail pads a unique high resilience and abrasion resistance.

Their superiority to those manufactured from other materials has been proven by their ability to reduce

dynamic forces by up to 65%, which is a crucial consideration for railway systems worldwide as they adopt

higher speeds and greater axle loads.

Material

Test Report of  Rubber (EPDM)

Product

EPDM

Specification

EP00179

No.

Item

Test Method

Required Value

Test Value

1

Shore Hardness

D-2240

60±5

64

2

Tensile Strength(Mpa)

D-412

1.25

14.4

3

Elongation at Break(%)

D-412

280

288

4

Permanent Compression Set
(%)

D-395

28

28

5

Tear Strength(KN/M)

D-624

/

43

6

Operating Temperature





-30C-100C

HDPE Properties

No.

Items

Unit

Technical Requirements

Actual Data

1

Density

g/3

0.95-0.98

0.95

2

Tensile

Mpa

≥19

19

3

Elongation

%

>80

150

4

Melting Point

170-190

190

5

Insulation Resistance

Ω

≥1×1010

3.5×1010

6

Hardness

A

≥98

98(A)

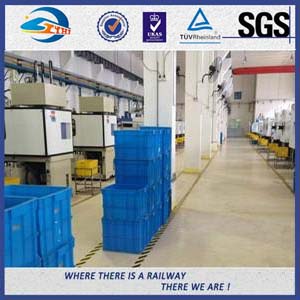

Working room




Application



Quotation necessity ( the more, the better )

1. Drawing with full size

2. Material

3. Order quantity

Sale Rang

1. Rail fastening system

2. Dog spike; Screw spike

3. Bolt set

4. Elastic clamp

5. Rail anchor

6. Rail shoulder

7. Fish plate

8. Tie plate

9. Plastic

10.  Rubber parts

11.  Brake shoe

12.  Steel rail

13.  New wood sleeper
