Fastening Rails Nabla Fastening System / Railway Fastening System Brand SUYU

Product Number
Railway Fastening System
Quantity:
1000
Rrice:
¥100000.00
Time:
2015/5/22 14:19:37
Share: Copy More
Detailed Product Description
Fastening Type: Nabla Fastening System Application: For Fastening Railway
Storage: Dry And Clean Warehouse Parts: Nabla Blade, Bolt And Nut, Guide Plate

The General Introduction

The Nabla Fastening System for ballasted track and slab track has the same key features that have made the Nabla system a success for decades.

It allows us to further enhance and simplify the installation operations and track maintenance.

The principle of Nabla Fastening System is to separate electrical insulation from the lateral support function by using two components assembled in the factory. By separating the two functions, it has been possible to use higher strength wear material in the lateral restraint block, thus increasing the life of the component and also providing means of lateral adjustment.

Features

1. Tensions to refusal for consistency of application force applied to the rail

2. Lateral adjustment in increments of 1.25 mm upto typical maximum +/- 10mm

3. Optimized for gauge widening in tight radius curves.

Parts

Parts Bolt and nut, Washer
Nabla plate
Rail anchor
Rail clip
Fish plate
Tie plate
Plastic pad and rubber pad
Crane rail

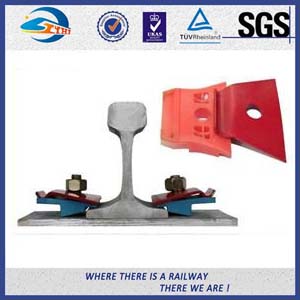

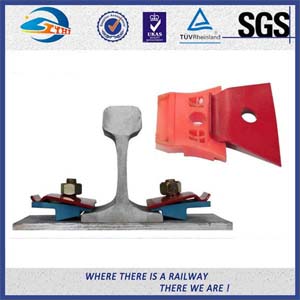

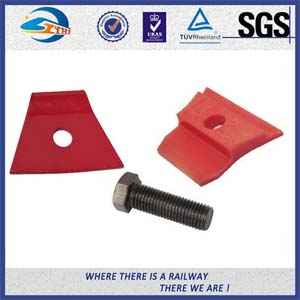

Photos for reference
