Heavy Din 536 Steel Crane Rail A75 / Steel Rail Track With Q235B Material
- Product Number
- Steel Rail,
- Quantity：
- 1000000
- Rrice：
- ￥1555555.00
- Time：
- 2015/4/20 1:19:30
Detailed Product Description
|
Product Name: |
Steel Rail |
Application: |
Railway |
|
Grade: |
4.6, 5.6, 8.8, 10.9 |
Material: |
Q235, 35#, 45#, 40Cr |
|
Surface: |
Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet |
Standard: |
GB11264-89 |
Heavy Din 536 Steel Crane Rail A75 / Steel Rail Track With Q235B Material
1. Chinese Standard Light Rail
Standard GB11264-89: GB6KG, GB9KG, GB12KG, GB15KG, GB22KG, GB30KG
Standard YB222-63: 8KG, 18KG, 24KG
Specifications
|
Standard: GB11264-89 |
|||||||
|
Size |
Dimension(mm) |
Weight |
Material |
Length(m) |
|||
|
Head(mm) |
Height(mm) |
Bottom(mm) |
Web(mm) |
||||
|
GB6KG |
25.4 |
50.8 |
50.8 |
4.76 |
5.98 |
Q235B |
6-12 |
|
GB9KG |
32.1 |
63.5 |
63.5 |
5.9 |
8.94 |
Q235B |
6-12 |
|
GB12KG |
38.1 |
69.85 |
69.85 |
7.54 |
12.2 |
Q235B/55Q |
6-12 |
|
GB15KG |
42.86 |
79.37 |
79.37 |
8.33 |
15.2 |
Q235B/55Q |
6-12 |
|
GB22KG |
50.3 |
93.66 |
93.66 |
10.72 |
23.3 |
Q235B/55Q |
6-12 |
|
GB30KG |
60.33 |
107.95 |
107.95 |
12.3 |
30.1 |
Q235B/55Q |
6-12 |
|
Standard: YB222-63 |
|||||||
|
8KG |
25 |
65 |
54 |
7 |
8.42 |
Q235B |
6-12 |
|
18KG |
40 |
90 |
80 |
10 |
18.06 |
Q235B/55Q |
6-12 |
|
24KG |
51 |
107 |
92 |
10.9 |
24.46 |
Q235B/55Q |
6-12 |
2. Chinese Standard Heavy Rail
Standard GB2585-2007: P38KG, P43KG, P50KG, P60KG
Specifications
|
Standard: GB2585-2007 |
|||||||
|
Size |
Dimension(mm) |
Weight |
Material |
Length (m) |
|||
|
Head(mm) |
Height(mm) |
Bottom(mm) |
Web(mm) |
||||
|
P38KG |
68 |
134 |
114 |
13 |
38.733 |
U71Mn |
12.5-25 |
|
P43KG |
70 |
140 |
114 |
14.5 |
44.653 |
U71Mn |
12.5-25 |
|
P50KG |
70 |
152 |
132 |
15.5 |
51.514 |
U71Mn |
12.5-25 |
|
P60KG |
73 |
170 |
150 |
16.5 |
61.64 |
U71Mn |
12.5-25 |
3. Chinese Standard Crane Rail
Standard YB/T5055-93: QU70, QU80, QU100, QU120
Specifications
|
Standard: YB/T5055-93 |
|||||||
|
Size |
Dimension(mm) |
Weight |
Material |
Length (m) |
|||
|
Head(mm) |
Height(mm) |
Bottom(mm) |
Web(mm) |
||||
|
QU 70 |
70 |
120 |
120 |
28 |
52.8 |
U71Mn |
12 |
|
QU 80 |
80 |
130 |
130 |
32 |
63.69 |
U71Mn |
12 |
|
QU 100 |
100 |
150 |
150 |
38 |
88.96 |
U71Mn |
12 |
|
QU 120 |
120 |
170 |
170 |
44 |
118.1 |
U71Mn |
12 |
4. American Standard Steel Rail
Standard ASTMA1, AREMA: ASCE25, ASCE30, ASCE40, ASCE60, ASCE75, ASCE85, 90RA, 115RE, 136RE, 175LBS
Specifications
|
Standard: ASTMA1, AREMA |
|||||||
|
Size |
Dimension(mm) |
Weight |
Material |
Length (m) |
|||
|
Head(mm) |
Height(mm) |
Bottom(mm) |
Web(mm) |
||||
|
ASCE 25 |
38.1 |
69.85 |
69.85 |
7.54 |
12.4 |
700 |
6-12 |
|
ASCE 30 |
42.86 |
79.38 |
79.38 |
8.33 |
14.88 |
700 |
6-12 |
|
ASCE 40 |
47.62 |
88.9 |
88.9 |
9.92 |
19.84 |
700 |
6-12 |
|
ASCE 60 |
60.32 |
107.95 |
107.95 |
12.3 |
29.76 |
700 |
6-12 |
|
ASCE 75 |
62.71 |
122.24 |
122.24 |
13.49 |
37.2 |
900A/1100 |
12-25 |
|
ASCE 85 |
65.09 |
131.76 |
131.76 |
14.29 |
42.17 |
900A/1100 |
12-25 |
|
90RA |
65.09 |
142.88 |
130.18 |
14.29 |
44.65 |
900A/1100 |
12-25 |
|
115RE |
69.06 |
168.28 |
139.7 |
15.88 |
56.9 |
900A/1100 |
12-25 |
|
136RE |
74.61 |
185.74 |
152.4 |
17.46 |
67.41 |
900A/1100 |
12-25 |
|
175LBs |
109.86 |
152.4 |
152.4 |
38.1 |
86.8 |
900A/1100 |
12-25 |
5. BS Standard Steel Rail
Standard BS11: 1985: 50O, 60A, 75A, 75R, 80A, 80R, 90A, 100A, 113A
Specifications
|
Standard: BS11: 1985 |
|||||||
|
Size |
Dimension(mm) |
Weight |
Material |
Length (m) |
|||
|
Head(mm) |
Height(mm) |
Bottom(mm) |
Web(mm) |
||||
|
50 O |
52.39 |
100.01 |
100.01 |
10.32 |
24.833 |
700 |
6-18 |
|
60 A |
57.15 |
114.3 |
109.54 |
11.11 |
30.618 |
900A |
6-18 |
|
75 A |
61.91 |
128.59 |
114.3 |
12.7 |
37.455 |
900A |
8-25 |
|
75 R |
61.91 |
128.59 |
122.24 |
13.1 |
37.041 |
900A |
8-25 |
|
80 A |
63.5 |
133.35 |
117.47 |
13.1 |
39.761 |
900A |
8-25 |
|
80 R |
63.5 |
133.35 |
127 |
13.49 |
39.674 |
900A |
8-25 |
|
90 A |
66.67 |
142.88 |
127 |
13.89 |
45.099 |
900A |
8-25 |
|
100 A |
69.85 |
152.4 |
133.35 |
15.08 |
50.182 |
900A |
8-25 |
|
113 A |
69.85 |
158.75 |
139.7 |
20 |
56.398 |
900A |
8-25 |
6. UIC860 Standard Steel Rail
Standard UIC860: UIC50, UIC54, UIC60
Specifications
|
Standard: UIC860 |
|||||||
|
Size |
Dimension(mm) |
Weight |
Material |
Length (m) |
|||
|
Head(mm) |
Height(mm) |
Bottom(mm) |
Web(mm) |
||||
|
UIC50 |
70 |
152 |
125 |
15 |
50.46 |
900A/1100 |
12-25 |
|
UIC54 |
70 |
159 |
140 |
16 |
54.43 |
900A/1100 |
12-25 |
|
UIC60 |
74.3 |
172 |
150 |
16.5 |
60.21 |
900A/1100 |
12-25 |
7. JIS Standard Steel Rail
Standard: JIS
Specifications
|
Standard: JIS E1103-91/JISE 1101-93 |
|||||||
|
Size |
Dimension(mm) |
Weight |
Material |
Length (m) |
|||
|
Head(mm) |
Height(mm) |
Bottom(mm) |
Web(mm) |
||||
|
JIS 15KG |
42.86 |
79.37 |
79.37 |
8.33 |
15.2 |
JIS E standard |
9-10 |
|
JIS 22KG |
50.8 |
93.66 |
93.66 |
10.72 |
22.3 |
9-10 |
|
|
JIS 30KG |
60.33 |
107.95 |
107.95 |
12.3 |
30.1 |
9-10 |
|
|
JIS 37Ａ |
62.71 |
122.24 |
122.24 |
13.49 |
37.2 |
10-25 |
|
|
JIS 50N |
65 |
153 |
127 |
15 |
50.4 |
10-25 |
|
|
CR 73 |
100 |
135 |
140 |
32 |
73.3 |
10-12 |
|
|
CR 100 |
120 |
150 |
155 |
39 |
100.2 |
10-12 |
|
8. EN Standard Steel Rail
Standard EN 13674-1-2003: 49E1, 49E2, 50E1, 50E2, 50E4, 50E5, 50E6, 54E1, 54E2, 54E3, 55E1, 60E1
Specifications
|
Standard: EN 13674-1-2003 |
|||||||
|
Size |
Dimension(mm) |
Weight |
Material |
Length (m) |
|||
|
Head(mm) |
Height(mm) |
Bottom(mm) |
Web(mm) |
||||
|
49 E1 |
67 |
149 |
125 |
14 |
49.39 |
R260/R350HT |
12-25 |
|
49 E2 |
67 |
148 |
125 |
14 |
49.1 |
R260/R350HT |
12-25 |
|
50 E1 |
65 |
153 |
134 |
15.5 |
50.37 |
R260/R350HT |
12-25 |
|
50 E2 |
72 |
151 |
140 |
15 |
49.97 |
R260/R350HT |
12-25 |
|
50 E4 |
70 |
152 |
125 |
15 |
50.46 |
R260/R350HT |
12-25 |
|
50 E5 |
67 |
148 |
135 |
14 |
49.9 |
R260/R350HT |
12-25 |
|
50 E6 |
65 |
153 |
140 |
15.5 |
50.9 |
R260/R350HT |
12-25 |
|
54 E1 |
70 |
159 |
140 |
16 |
54.77 |
R260/R350HT |
12-25 |
|
54 E2 |
67.01 |
161 |
125 |
16 |
53.82 |
R260/R350HT |
12-25 |
|
54 E3 |
67 |
154 |
125 |
16 |
54.57 |
R260/R350HT |
12-25 |
|
55 E1 |
62 |
155 |
134 |
19 |
56.03 |
R260/R350HT |
12-25 |
|
60 E1 |
72 |
172 |
150 |
16.5 |
60.21 |
R260/R350HT |
12-25 |

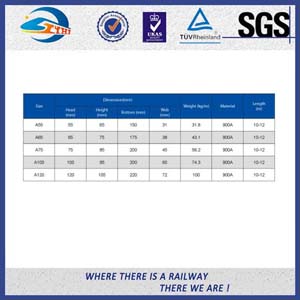

9. IN Standard Steel Rail
Standard EN 13674-1-2003: A55, A65, A75, A100, A120
Specifications
|
Standard: DIN536 |
|||||||
|
Size |
Dimension(mm) |
Weight |
Material |
Length (m) |
|||
|
Head(mm) |
Height(mm) |
Bottom(mm) |
Web(mm) |
||||
|
A55 |
55 |
65 |
150 |
31 |
31.8 |
900A |
10-12 |
|
A65 |
65 |
75 |
175 |
38 |
43.1 |
900A |
10-12 |
|
A75 |
75 |
85 |
200 |
45 |
56.2 |
900A |
10-12 |
|
A100 |
100 |
95 |
200 |
60 |
74.3 |
900A |
10-12 |
|
A120 |
120 |
105 |
220 |
72 |
100 |
900A |
10-12 |
10. Grooved Rail
Standard BS EN 14811: 2006: 59R1 59R2 60R1 60R2
Specifications
|
Size |
Height (mm) |
Bottom (mm) |
Head A (mm) |
Head B(mm) |
Channel A (mm) |
Channel B (mm) |
Web (mm) |
Weight (kg/m) |
|
59R1 |
180 |
180 |
113 |
56 |
42 |
15 |
12 |
58.97 |
|
59R2 |
180 |
180 |
113 |
55.83 |
42.52 |
14.65 |
12 |
58.14 |
|
60R1 |
180 |
180 |
113 |
56 |
36 |
21 |
12 |
60.59 |
|
60R2 |
180 |
180 |
113 |
55.83 |
36.34 |
20.83 |
12 |
59.75 |
