Railroad Fastener Qualified Railway Bolt with washer / heavy square nuts

Product Number
Railway blot
Quantity:
100000
Rrice:
¥4880.00
Time:
2015/4/20 3:14:43
Share: Copy More

Detailed Product Description

Product Name:

Railway Bolt

Application:

Railway

Grade:

4.9, 5.6, 8.8, 10.9

Material:

Q235, 35#, 45#, 40Cr

Surface:

Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet

Standard:

UIC864-2

Railroad Fastener Qualified Railway Bolt  with washer / heavy square nuts

Specifications:

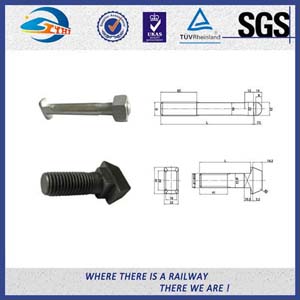

Rail Bolt

SUYU specializes in producing rail fastening products and railway bolt is one of our main products. Shown below are some of our main railway bolt products.

1. HS26/HS32 railway bolts for ribbed base plate are available in various dimension as below, as per UIS864-2
Material: Q235, 35# and 45#
Grade: 4.6, 5.6, 8.8
Surface: Plain, black painting
MOQ: 5000PCS
Packing: Plastic bags and wooden pallets or according to clients' requirement

Type

Dimension

Weight (Kg)

HS26/55

M22 ×55/40 Nut M22/H22/S39

0.45

HS26/65

M22 ×65/45 Nut M22/H22/S39

0.475

HS26/90

M22 ×90/45 Nut M22/H22/S39

0.549

HS32/55

M22 ×55/40 Nut M22/H22/S39

0.469

HS32/65

M22 ×65/45 Nut M22/H22/S39

0.503

HS32/90

M22 ×90/45

0.577

2. We produce large quantities of railway bolts including clamp bolt and inserted bolt for the Russian market
Material: Q235, 35# and 45#
Grade: 4.6, 4.8, 5.6, 8.8
Surface: Plain, black painting
MOQ: 5000PCS
Packing: Plastic bags and wooden pallets or according to clients' requirement

Item

Dimension

Weight (Kg)

Clamp bolt with nut

M22 ×75 M22/S36/H22

0.475

Inserted bolt with nut

M22 ×175 M22/S36/H22

0.78

3. We produce rail bolt and clip bolt for concrete sleeper and crane rail. The diameter is 18mm and 22mm, its length varies from 125mm to 195mm, the railway bolt material is in accordance with UIC864-2, and the grade is 4.5 and 5.6.

4. We produce the short clip bolt and long clip bolt with BSW thread for the African market. Round or square necks are mainly used with steel sleeper assemblies together with rail clips.

M20 X 60 30Kg rail
M20 X 75 30Kg rail
M22 X 66 40Kg rail
M22 X 80 48Kg rail

Assembly with heavy series nut and spring washer optional

Material: Q235, 35# and 45#
Grade: 4.6, 4.8, 5.6, 8.8
Surface: Plain, black painting
MOQ: 5000PCS
Packing: Plastic bags and wooden pallets or according to clients' requirement

5. We can also produce the special clip type railway bolt according to our customers' requirement
Material: Q235, 35# and 45#
Grade: 4.6, 4.8, 5.6, 8.8
Surface: Plain, black painting
MOQ: 5000PCS
Packing: Plastic bags and wooden pallets or according to clients' requirement

Sticking to our quality first policy, SUYU pays great attention to quality control management. We have been granted ISO9001-2008 certificates and have received the production license of China's Railway Ministry on railway products. We have a full set of inspection instruments to ensure all our railway bolt products are of high quality and up to customers' requirements.

As a leading manufacturer of rail fastening based in China, SUYU also produces many other railway fasteners, such as track bolt, track spike, sleeper screw, rail anchor, rail joint bar, tie plate, rail clip, elastic rail clip, SKL tension clamp, rail shoulder, and so on.
